Features

Name: Heavy Duty Series Lighting Lifter

ZH-DWD18TE
This multi-functional lifting system is designed to solve the maintenance problem of high attitude electrical equipment, such as lighting, CCTV, smoke detector, banner etc.

▍Advantages ▍

1.Heavyduty：The loading capacity of the ZH-SHD series can be from 20kgs to 100kgs, especially suitable for loading heavy objects.
2.Cost saving：personnel expenses, maintenance equipment rental costs, energy costs.
3.Safety：Decrease the risk of people getting electric shock or fallen from high attitude.
4.Optional control system：Remote control / Wire-control.
5.Efficiency：decreases maintenance time, simplify routine inspection.

▍Application scenario ▍

Industry: public facilities that required heavy spot light, metro & rail station lighting system, oil & gas factory lighting system
Commercial: Gymnasium lighting system, Hotel lobby lighting & CCTV, smoke detector, Shopping mall lighting & CCTV

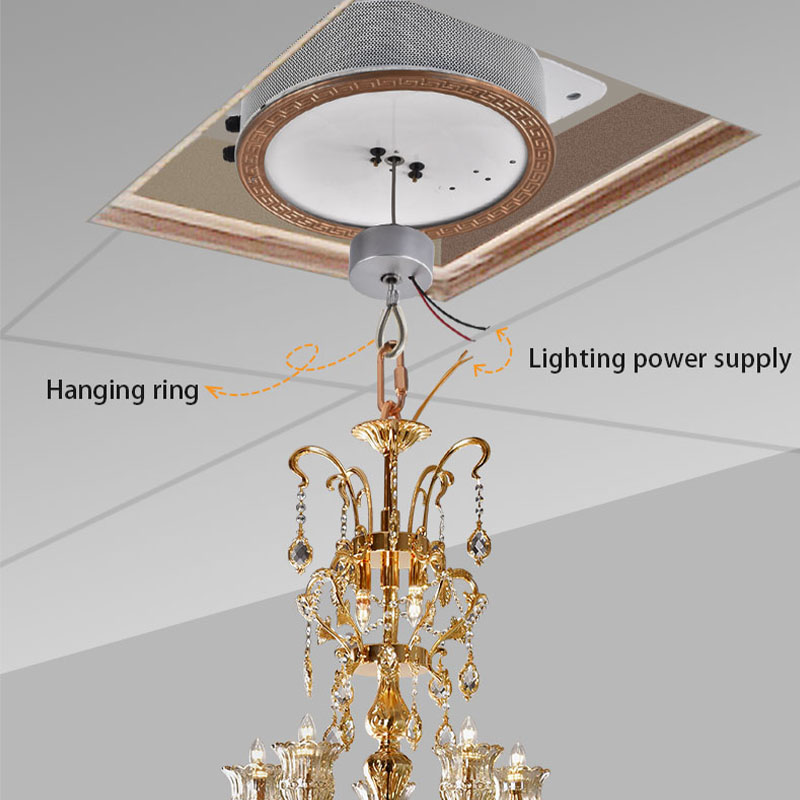

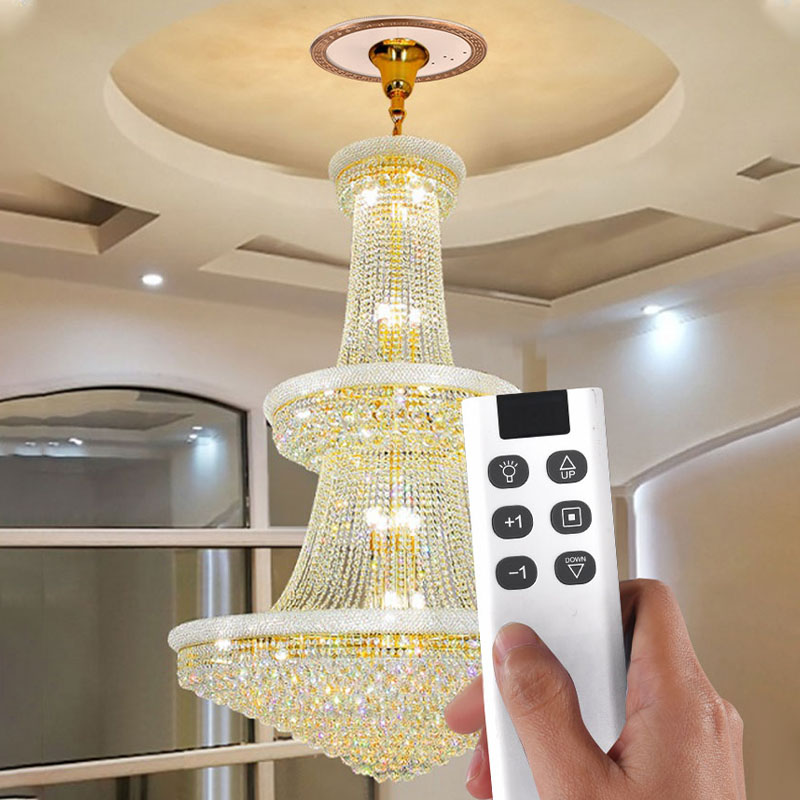

Luxury: Lifting system for crystal chandeliers

▍Features ▍

1.Large scope of application: ZH-SHD10TT is the heavy-duty series designed for clients that requires to load heavy objects, it has large scope of application range in industry & commercial area.
2.Slim design: ZH-SHD series is designed to be thinner that can be hidden in ceiling.
3.Strong pulling force: 1.8mm diameter steel wire rope that provides 300KGS pullingforce.

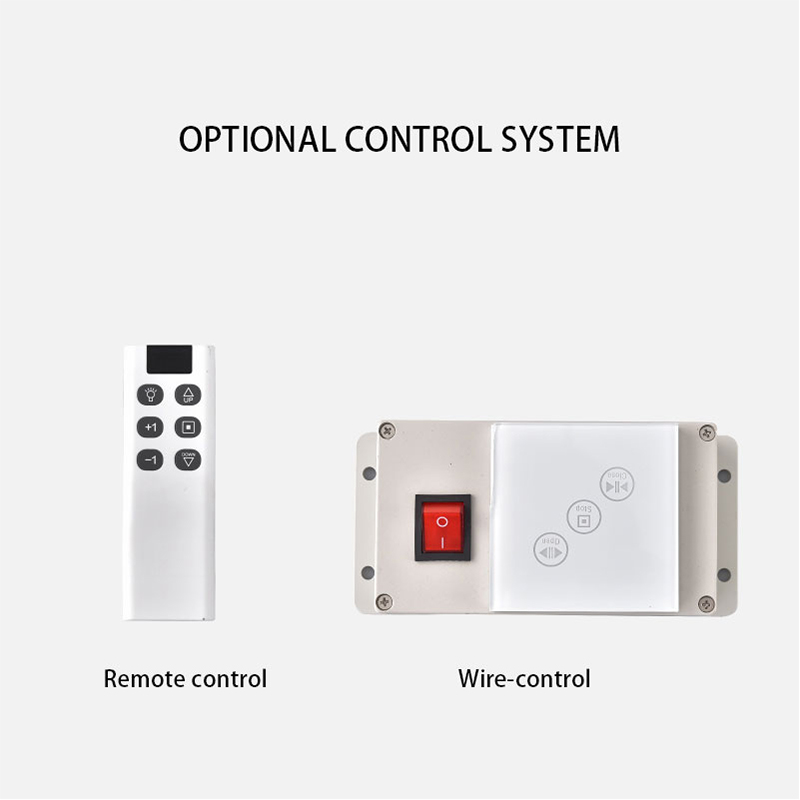

4.Optional control system: wireless remote controller/ wire control box.

▍Specification ▍

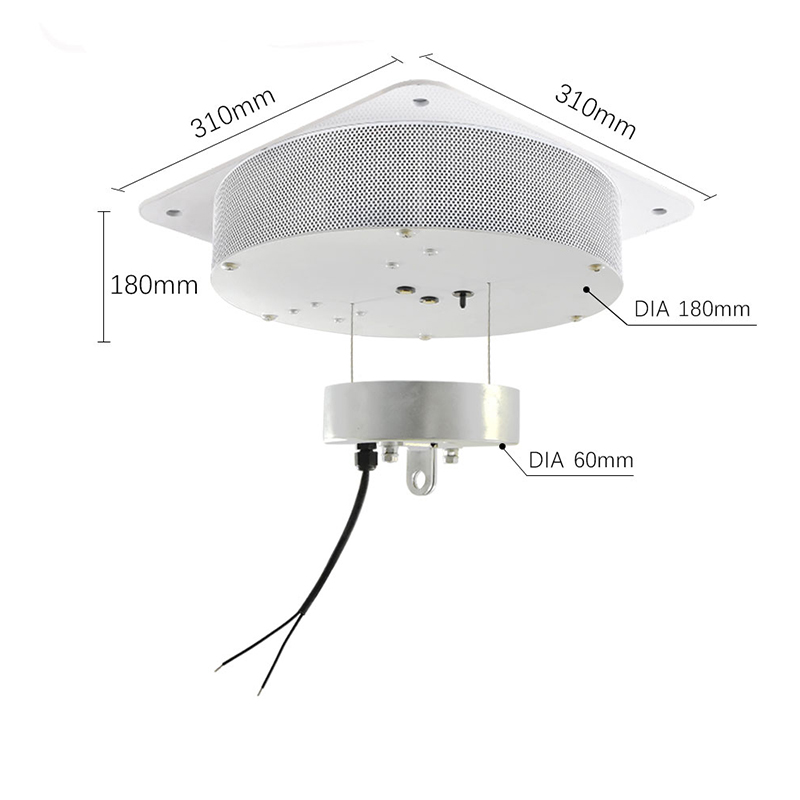

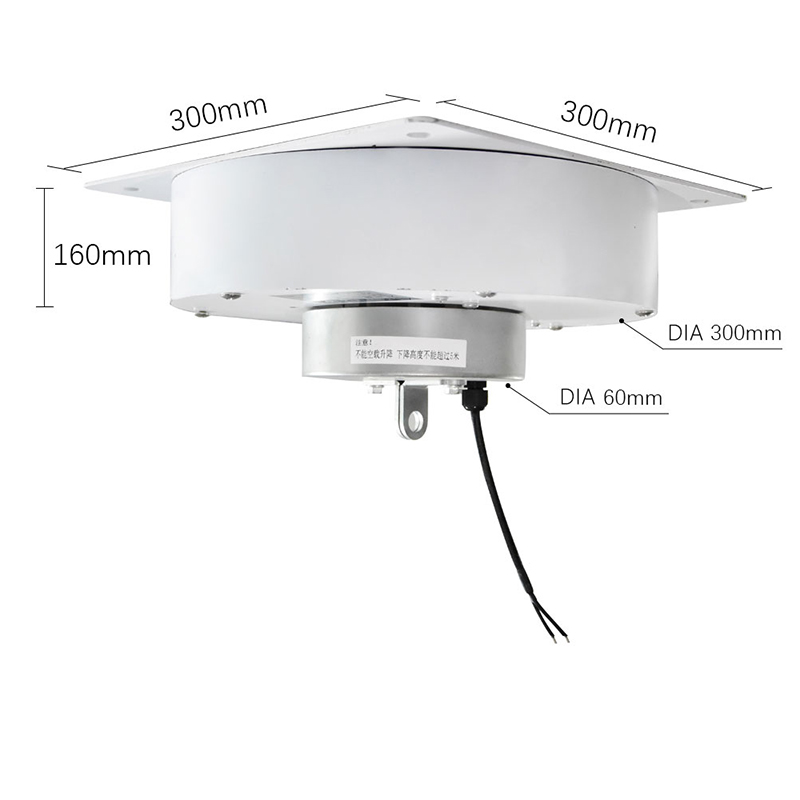

Product Size	*202016cm*
Net Weight	6kgs
Maximum Lifting Capacity	20-100kgs
Voltage Input	220V/120V 50/60Hz
Rated Power Input	25W
Protection Against Electric Shock	CLASSⅠ
Protection Class	IP55
Maximum Matching Lighting Voltage	800W
Remote Control Distance	≤50m
Steel Wire Rope Diamter	1.8mm(aviation grade)
Lifting Height	≤25m
Lifting Speed	2.0m/min
